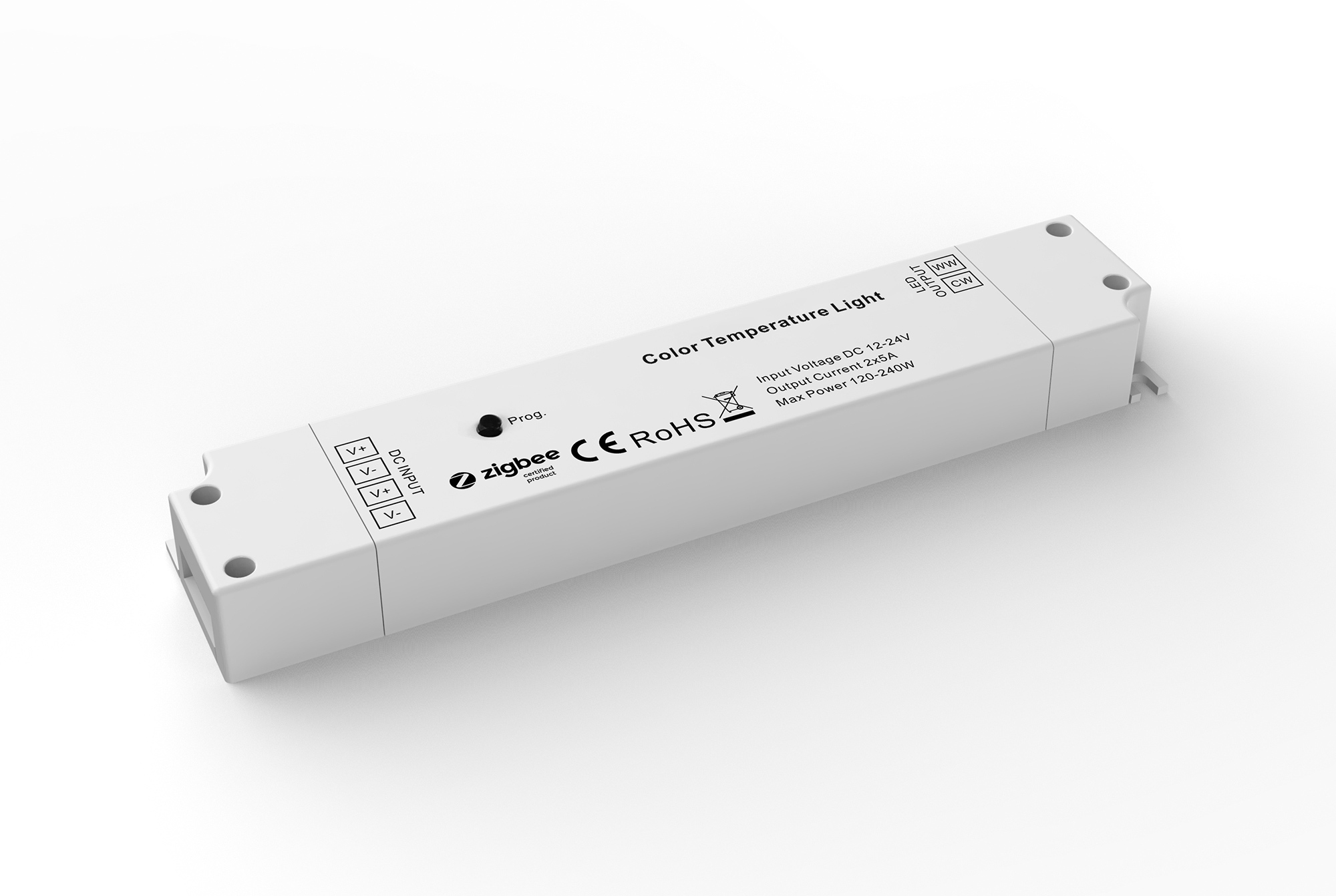

Color temperature LED driver

Family product variants are as follows:
SR-ZG9101FA-CCT,
SR-ZG1029-CCT-2PIN,
SR-ZGCCT-2PIN,
SR-ZG2501-2PIN,
SRP-ZG9105-CVT-2Pin,
SR-ZG1029-5C,
DIY-ZG9101-CCT,
SRP-ZG9105-24-15CVT,
SRP-ZG9105-24-30CVT,
SRP-ZG9105-24-50CVT,
SRP-ZG9105-24-75CVT,
SRPL-ZG9105-24-50CVT,
SRPL-ZG9105-24-75CVT,
SRPF-ZG9105-24-50CVT,
SRPF-ZG9105-24-75CVT

Product Features:
• Color temperature LED driver based on latest Zigbee 3.0 protocol.
• Enables to control ON/OFF, light intensity and CCT of connected LED lights.
• Zigbee end device that supports Touchlink commissioning.
• Can directly pair to a Zigbee remote via Touchlink without coordinator.
• Supports self-forming Zigbee network without coordinator.
• Enables to add devices to the self-formed network.
• Supports find and bind mode to bind a Zigbee remote.
• Supports Zigbee Green Power feature and can bind to max. 20 Zigbee Green Power switches.
• Compatible with universal Zigbee gateway products.
• Compatible with universal CCT Zigbee remotes.
• Compatible with DMX512, DALI, KNX, 0/1-10V and other protocols.
• Waterproof grade: IP20.
