nRF5340 Zigbee R23

The nRF5340 Zigbee R23 platform is a combination of the nRF5240, a high-end dual-core multiprotocol System-on-Chip with Nordic’s Zigbee R23 add-on. This add-on is based on the nRF Connect SDK and integrates the DSR ZBOSS R23 Zigbee stack. It is developed according to the latest R23 Zigbee PRO specification and is designed to deliver the best cost-performance combination for Zigbee PRO and Zigbee 3.0 products.

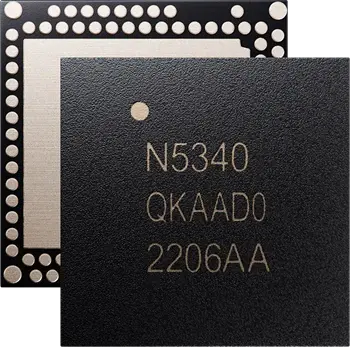

The nRF5340 is the world’s first wireless SoC with two Arm Cortex-M33 processors. The combination of two flexible processors, the advanced feature set, and an operating temperature up to 105 °C, makes it the ideal choice for LE Audio, professional lighting, advanced wearables, and other complex IoT applications.

The nRF5340 is an all-in-one SoC, including a superset of the most prominent nRF52 Series features. Features like Bluetooth 5.3, high-speed SPI, QSPI, USB, up to 105 °C operating temperature, and more, are combined with more performance, memory and integration, while minimizing current consumption.

The application processor is optimized for performance and can be clocked at either 128 or 64 MHz, using voltage-frequency scaling. It has 1 MB Flash, 512 KB RAM, a floating-point unit (FPU), an 8 KB 2-way associative cache and DSP instruction capabilities. The network processor is clocked at 64 MHz and is optimized for low power and efficiency (101 CoreMark/mA). It has 256 KB Flash and 64 KB RAM.

The nRF5340 takes security to the next level. It offers trusted execution, root-of-trust and secure key storage security features. Arm TrustZone provides trusted execution by implementing a division between secure and non-secure Flash, RAM, peripherals and GPIOs. The state-of-the-art Arm CryptoCell-312 provides hardware-accelerated cryptography, and together with the key management unit (KMU) peripheral, root-of-trust and secure key storage are implemented.

The nRF5340 SoC supports an extensive range of wireless protocols. It supports Bluetooth Low Energy and is capable of all angle-of-arrival (AoA) and angle-of-departure (AoD) roles in Bluetooth Direction Finding. In addition, it supports LE Audio, high-throughput 2 Mbps, Advertising Extensions and Long Range. Mesh protocols like Bluetooth mesh, Matter, Thread and Zigbee can be run concurrently with Bluetooth LE, enabling smartphones to provision, commission, configure and control mesh nodes. NFC, ANT, 802.15.4 and 2.4 GHz proprietary protocols are also supported.
