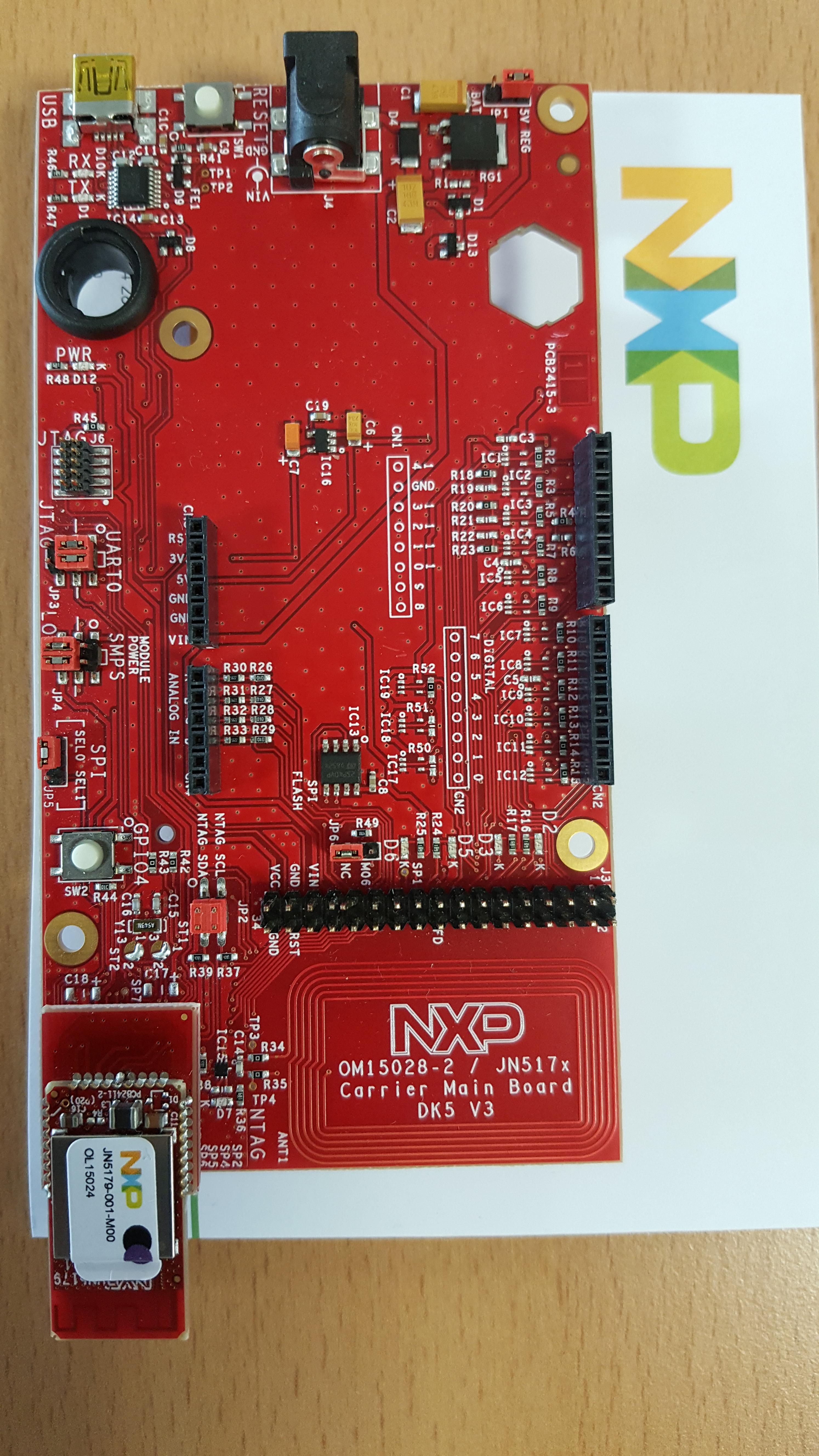

NXP JN517x ZigBee 3.0 Ready Platform

By NXP Semiconductors Netherlands B.V.

The JN517x series is a range of ultra low power, high performance wireless microcontrollers suitable for Thread and ZigBee 3.0 applications to facilitate the development of Smart Home and Smart Lighting applications. It features a high-performance and low-power ARM Cortex-M3 processor with debug with programmable clock speeds. The JN517x devices are available in JN5174, JN5178 and JN5179 variants, respectively having 160 kB, 256 kB and 512 kB of embedded Flash memory as well as 32 kB of RAM and 4 kB of EEPROM. The embedded Flash can support “Over-The-Air” code download of software stacks. Radio transmit power is configurable up to +10 dBm output. The very-low receive operating current (down to 12.7 mA and with a 0.6µA sleep timer mode) gives excellent battery life allowing operation direct from a coin cell. The JN517x also includes a 2.4 GHz “IEEE802.15.4 compliant” transceiver and a comprehensive mix of analog and digital peripherals.

The JN517x is ideal for battery-operated applications supported through the comprehensive power-saving modes available in the device. The on-chip peripherals, which include a fail-safe I²C-bus, SPI-bus ports (both master and slave), and a six-channel analog-digital converter with internal temperature sensor support a wide range of applications directly without extra hardware.

Visit NXP Semiconductors Netherlands B.V.

Product Details

  • SKU N/A
  • Firmware Version 82869/80202
  • Hardware Version 1.0
  • Certificate ID ZIG16044ZCP27074-24
  • Certified Date 09/21/2016
  • Compliance Document Download Compliance Document
  • TIS/TRP Tested No
