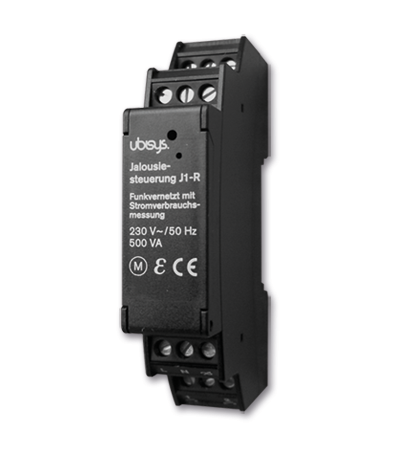

ubisys Shutter Control J1-R

By ubisys technologies GmbH

This shutter control allows you to drive your shutters, awnings, screens and blinds up and down. You can use motors with a max. power output of up to 500VA.

Integrated power consumption metering: This ubisys component from our smart home program allows you to register the actual power requirements of the attached end devices. It will show you exactly how much any of the end devices in your home consumed at any given time.

This component has one connection to attach motorized elements and two connections for operating elements (switch or push-button). Push-buttons can also be set up to regulate a group of lamps or even activate scenarios.

Invisible: The shutter control J1-R is to be installed in the control box of the sub-distribution on a DIN rail. The standardized design allows the replacement of an existing rail mount device (e.g. a relais) by the smart universal dimmer D1-R. A flush-mount version for the installation behind a light switch or a wall or ceiling outlet is also available.

The wireless components used in the smart home system by ubisys are based on the international standards IEEE 802.15.4 and ZigBee. This guarantees long term availability of all components thus protecting your investment.

Due to the resilient and innovative radio controlled technology there are no special skills needed when installed. This solution not only makes it ideal for new buildings but also for redevelopments and renovations. Additional components can be added and perfectly integrated into your smart home by and by. This leaves the decision when and how extensively you want to expand your system entirely up to you.

And with the Over-the-Air (OTA) firmware upgrade this component — as well as all other smart home components — will always stay up to date. This makes you well prepared for the future „Smart Grid”.

Visit ubisys technologies GmbH

Product Details

  • SKU 1144
  • Firmware Version 1.09-1.77
  • Hardware Version 5
  • Certificate ID ZIG16010ZB330010-24
  • Certified Date 08/18/2016
  • Compliance Document Download Compliance Document
  • TIS/TRP Tested No
