Matter

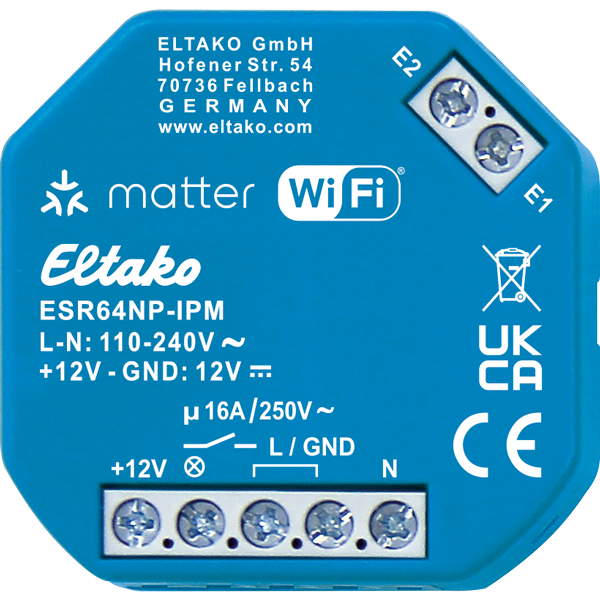

ESR64NP-IPM

By Eltako GmbH

Based on the CHIP SDK, Eltako has developed its own flexible device platform. Essentially, all Eltako devices are Matter Bridges / Aggregators. Specific Interfaces / Endpoints can be de-activated and re-activated in the field by endusers. The Eltako platform will support a piggy-back adapter to bridge various Enocean devices. All Eltako devices share exactly the same firmware. Device variants are controlled with an Eltako’s internal configuration, and not by code variants, i.e. to minimize the QM test efforts internally.
So far, the platform with all device variants has been conformance tested at TÜV already.
Currently, another ATL test is planned with the Enocean piggy-back adapter installed,
subject to futher CSA certification applications in the future.

Product Details

  • SKU 30064015
  • Firmware Version 2.0.0
  • Hardware Version 1.0.0
  • Certificate ID CSA243A2MAT43605-24
  • Certified Date 07/10/2024
  • Product ID 0x03F1
  • Vendor ID 0x1344
  • Compliance Document Download Compliance Document
  • TIS/TRP Tested No
  • Specification Version 1.2
  • Transport Interface Wi-Fi, Bluetooth
  • Primary Device Type ID 0x000e
