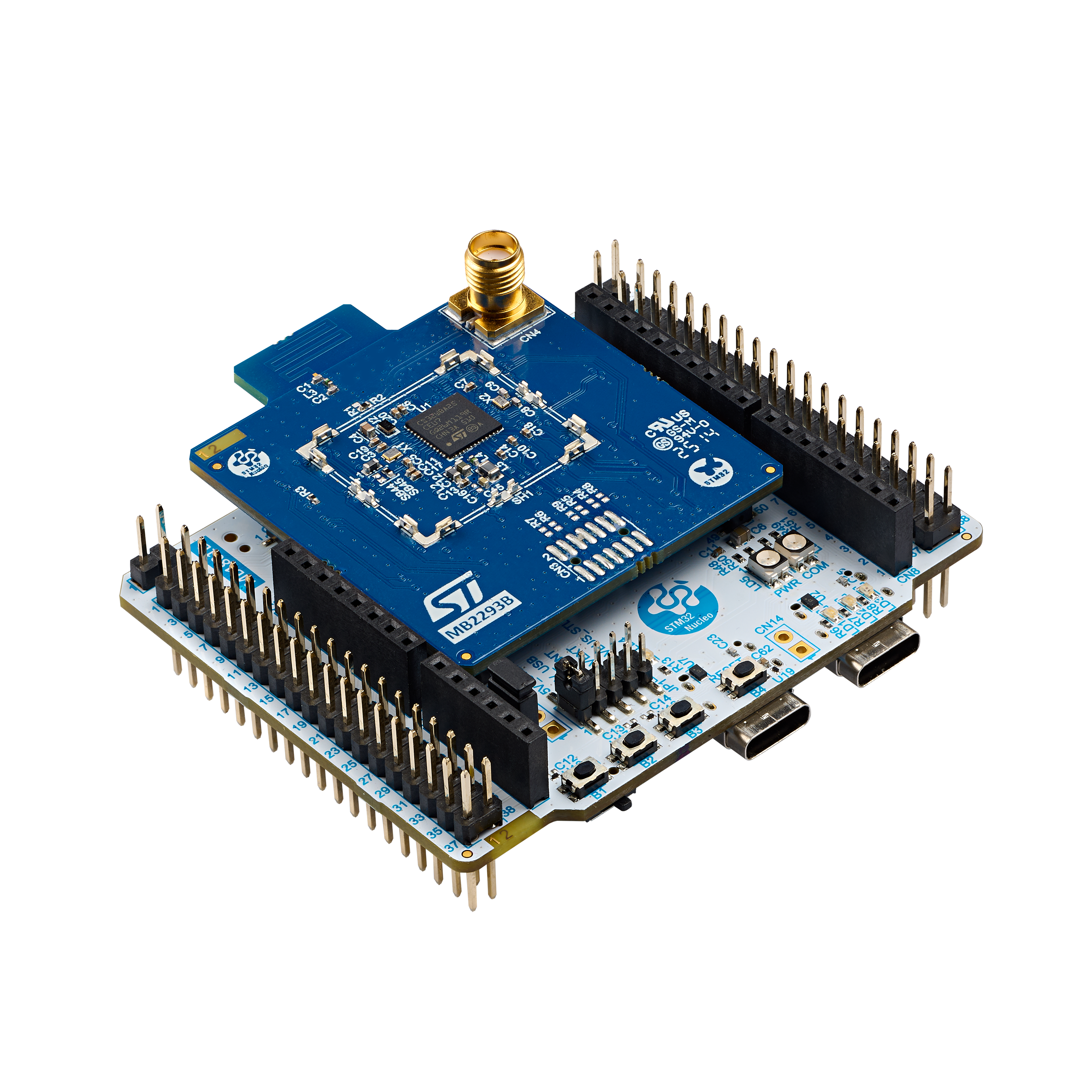

NUCLEO-WBA2X.Nucleo Board

The STM32WBA2x, which is R22 RFD compliant platform, is the most affordable STM32 wireless MCU supporting the latest protocols (Bluetooth LE, IEEE 802.15.4 communication protocols, Zigbee, and Thread). It delivers a rich feature set in a compact, energy-efficient design, ideal for cost- and energy-sensitive wireless applications.

The line offers a 64 MHz Arm Cortex-M33 CPU with TrustZone, 512 Kbytes of flash memory, 96 Kbytes of RAM, and is available in three packages: 32-pin and 48-pin UFQFPN, and 37-pin WLCSP.

It also provides pin-to-pin compatibility with the STM32WBA55Cx (UFQFPN 48 package) and STM32WBA52Kx & STM32WBA54Kx microcontrollers (UFQFPN 32 package), enabling straightforward product cost optimization across generations.

With best-in-class +10 dBm output power, support for USB full-speed, and a Q-SPI interface with on-the-fly decryption, the STM32WBA2x offers exceptional value and flexibility for a wide range of short-range wireless applications.

Compliant with RED, CRA and US Security standards, these MCUs meet stringent regulatory requirements, ensuring global applicability.
