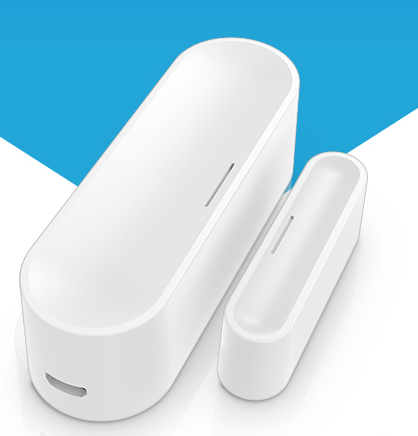

Door Sensor

By Midea Group

Door Sensor Specifications:
1. Working Voltage:DC3V ( 1×CR2032)
2.Standby Current:≤5uA
3.Alarm Current:≤30mA
4.Detection Range:>20mm
5.Alarm Output:Normally Closed
6.Alarm Indication:Red LED
7.Wireless : ZigBee HA
8.Working Temperature:-10℃ ~ +55℃
9.Working Humidity:≤95%RH
10. Sensor Dimensions:62×32×16mm
11. Magnet Dimensions:12×40×14mm

Product Details

  • SKU MSSR-DA011
  • Firmware Version MSSR-DA011-0.0.11
  • Hardware Version MSSR-DA011 V0.11
  • Certificate ID ZIG17045ZHA25879-24
  • Certified Date 05/17/2017
  • Compliance Document Download Compliance Document
  • TIS/TRP Tested No
